Slim 10W qi Wireless Charger Pad

Universal 10W qi Wireless Charger For Mobile Phones

                          Standard QI WPC 1.2 protocol Universal compatible
                           qi-enabled phones

                            Compatible with iPhone 12, iPhone 11, iPhone X,
                            Galaxy Note 8, Note 5, Galaxy S6, Galaxy S6 Edge, Galaxy S7,
                            S7 Edge, Galaxy S8, S8 plus
                            and other QI-standard enabbled smart phone.







Optional color: Black and White color
5W Charger input: 5V/ 2A, output: 5V/ 1A
7.5W Charge input: 5V/2A, output: 5V/ 1A, 5V/1.5A
10W Charger input: 5V/ 2A,9V/1.5A, output: 9V/1.2A

10W fast charge model function optional for Android devices
7.5W fast charge model optional for iPhone 8/ iPhone 8 Plus / iPhone X

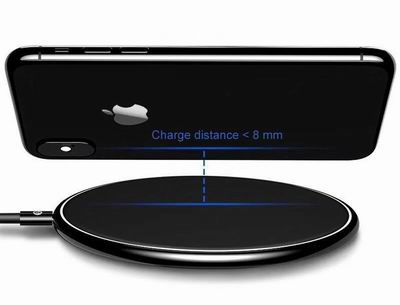

                           Charge distance: 4 ~8 mm, support charge the phone with
                           protective case, so customers do not need to take off their
                           cell phone protective case.

                           For the safety charge, please do not use metal protective case
                           for the phone when use the wireless charge function.

Output efficiency: 75%~80% transmision rate


FOD function:

build in intelligent identification chips to detect foreign metal objects,
when the charger detect some metal object like coins,
the charger will stop power supply.

                                          Build in smart chips to control charge, over charge protection,
                                          short circuit protection, over temperature protection.


                                          When the charging current is over 2A,
                                          the charger wil stop working to avoid danage.

                                          or the temperature is over 60 degree, the charger will stop
                                          charging 1 munite, and start to charge again when the temperature
                                          get down to the safety temperature.

Specifications:

Charger input: 5V/ 2A, 9V/1.5A

Output: 5V/ 1A, 5V/1.5A,9V/1.2A

Charging frequency: 110-205 KHz

Working Temperature：-10 - +55 C

Product size: 100*100*10 mm

Package size: 110*110*28 mm

Charger diameter: 100 mm
